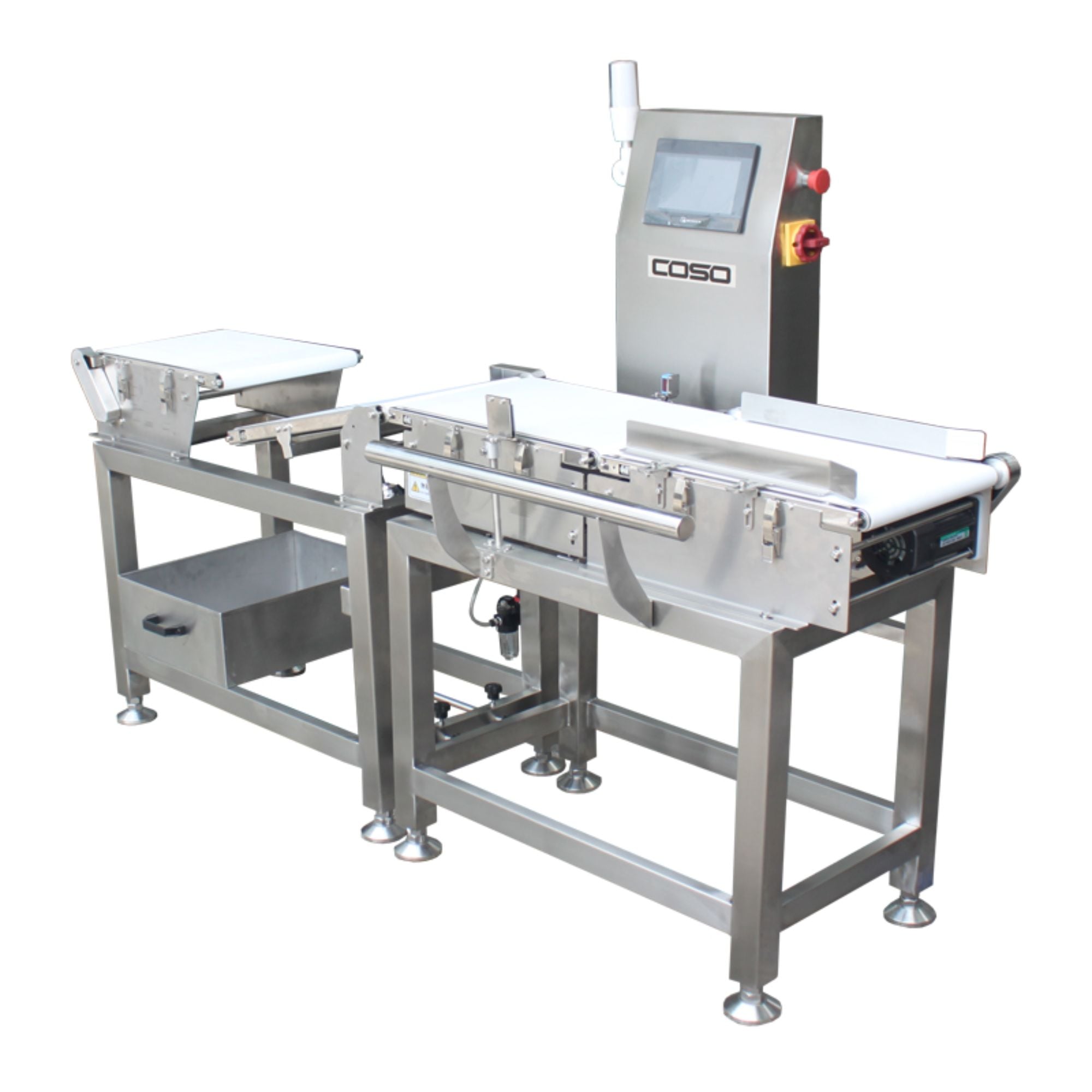

Weighing Scales Weight Checking Machine with Sinking Conveyor Rejector

Weighing Scales Weight Checking Machine with Sinking Conveyor Rejector

  • Product Description

  • Details Images

  • Certifications

  • Inquiry

  • Related Products

Product Description

Checkweigher and weight sorting machines are widely used in lectronic hardware, pharmaceutical, food, chemical, beverage, health care products,and many other industries. Checkweigher machines can check packing products’ weight online whether their weights are overweight or less-weight to ensure the weight of products to meet standards.Weight sorting machine applies to food industry like seafood, aquatic product, fruit and vegetable, meat and poultry etc.It can weight and sort single product to specific classification or weight grade.

Weigh sorting machine is also called as dynamic checkweigher, weight testing machine, weight sorter, online weighing scale. Checkweigher is automatic device that used to check the products’ weight in automatic packing production line, and it can check unqualified products in a continuous working process whose weight doesn’t accord with the standard weight we set. Also, the checkweigher can automatically sort products.


Application:

Checkweigher can be widely used in electronic hardware, pharmaceutical, food, chemical, beverage, health care products, printing, light industry, agricultural and sideline products, express logistics filed etc. It can check packing products’ weight online whether their weights are overweight or less-weight, and feedback information to canned or packaging equipment; at the same time, check weight machine can check products’ quantities or attachment whose package is bag, box, can, bottle, carton etc to see whether products lack something or not. Using checkweigher can ensure products’ net weight, quantities accord with standard and requirements, enhance products’ quality and integrity, save costs and avoid customers’ complaints.


Main Functions:

1. Report function: built-in report statistics; the report can generate EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year statistical data (need to be equipped), at any time hold grip production status;

2. Interface: reserved standard interface, convenient for data management, can connect communication network with PC and other intelligent devices;

3. Achieve centralized control: can achieve centralized control of a computer / man-machine interface operates many check weighers;

4. Parameter recovery function: possessing the factory parameter setting recovery function.


Features:

1.Versatility: Standardized machine structure and standardized man-machine interface can complete the weighing of various materials;

2.Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;

3.Simple operation: the use of Weilen color man-machine interface, the whole intelligent, user-friendly design;

4. Easy to maintain: The conveyor belt is easy to disassemble, easy to install, maintain and clean;

5. Adjustable speed: adopt variable frequency control motor, speed can be adjusted according to needs;

6. High-speed, high-precision: adopt the high-precision digital sensors;

7. Zero tracking: can be manually or automatically cleared, and dynamic zero tracking.

8. Can combine with metal detector, x ray machine, code machine, automatic scanner, automatic sealing machine.


Specification:

Basic Parameters of CW Check Weight Machine

Model CW-120 CW-150 CW-200 CW-300 CW-400 CW-500 CW-600
Single Weighing Scope ≤20g ≤200g ≤1000g ≤3000g ≤20kg ≤40kg ≤40kg
Accuracy ±0.2g ±0.2g~±0.5g ±0.3g~±1g ±0.5g~±3g ±1g~±5g ±5g~±20g ±5g~±20g
Minimum scale 0.01g 0.1g 0.1g 0.1g 1g 1g 1g
Conveying Speed ≤30m/min 40~70m/min 60~90m/min 60~90m/min 30~60m/min 25~50m/min 25~50m/min
Max Speed 100 pcs/min 200 pcs/min 160 pcs/min 80 pcs/min 60 pcs/min 40 pcs/min 35 pcs/min
Products to be weighed Length ≤50mm ≤150mm ≤300mm ≤300mm ≤500mm ≤650mm ≤650mm
Width ≤50mm ≤120mm ≤180mm ≤270mm ≤350mm ≤440mm ≤530mm
Conveyor Belt’s size of Checkweigher Length 250mm 200mm/300mm 400mm 450mm 620mm 1075mm 1200mm
Width 120mm 150mm 210mm 300mm 400mm 490mm 600mm
Rated Power 0.1KW 0.1KW 0.15KW 0.4KW 0.4KW 0.4KW 0.4KW
Power Supply AC220V±10% 50HZ(60HZ)
Rejection Air Blowing/Push Lever/Swing Arm
Controlling System High Speed A/D Sample Controller
Operating Panel Touch Screen
Preset Products’ name 99
Operating Direction Facing Machine, from Left to Right
External Gas Source 0.6-1Mpa
Interface of Air Pressure Φ8mm
Working Environment Temperature:0℃~40℃,Humidity: 30%~95%
Material of Machine SUS304
